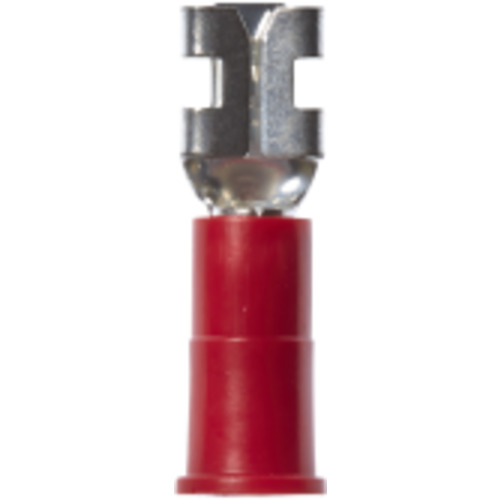

3M Highland Vinyl Insulated Female Disconnect Terminal FDV18-250Q AWG 22-18
Additional Canadian Tariff of 25 %
| Type | Disconnect | Cable Size | 5 3/8″ × 5 3/4″ |
| Tongue Style | Standard |
Product Features
| Family Description | Alternate Mfg # 60008 | Country of Origin | USA |
| Remarks | •Red vinyl-insulated, butted-seam barrel with a funnel-designed, polyvinyl chloride sleeve allows for easy insertion of wires •Dents and rolled edges of this female disconnect terminal offer excellent holding force •Allows for quick and easy disconnect of wires •Mates with 0.25-in wide male tab •Accommodates wire sizes 22 to 18 AWG •Made of durable brass for good conductivity and has corrosion-resistant tin plating •Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C) •Rated 600V for building wire and 1000V for signs, fixtures or luminaires •UL Listed, CSA Certified and RoHS 2011/65/EU Compliant •100/carton, 500/case |
Shipping Info
Package Weight
0.075
