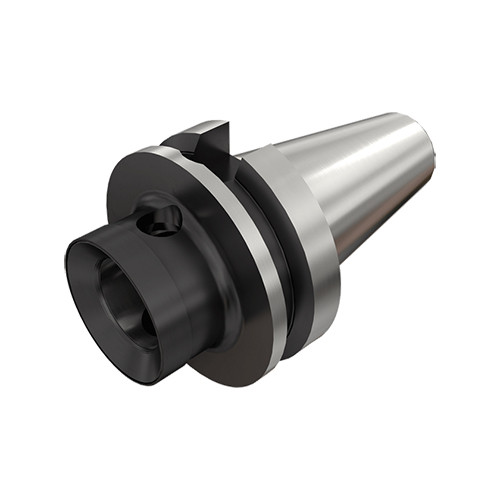

BT30 MB50

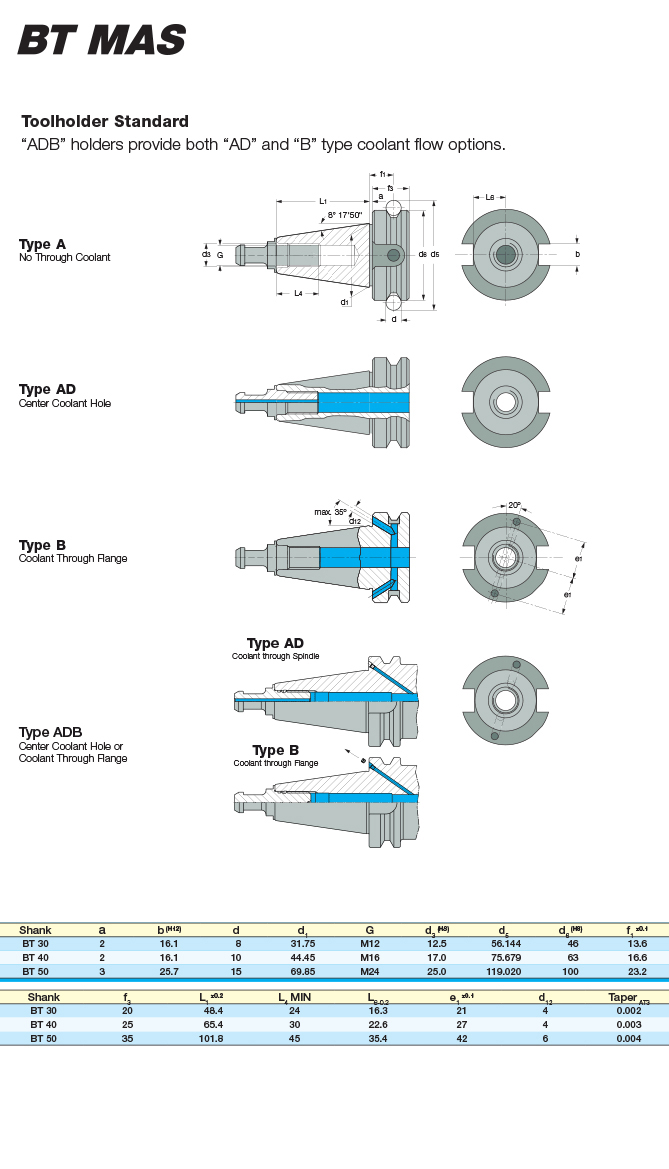

MB modular connection system with BT MAS-403 FORM AD taper shanks

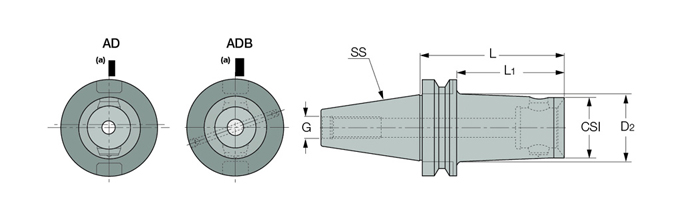

| Shank Size (SS) | 30 | Body Material | Steel |
| Protruding Length (LPR) | 2.362″ | Measurement Type | Inch |
| Connection Diameter Workpiece Side (DCONWS) | 1.9685″ | Tool Type | BT |
| Connection Size (CSI) | MB50 | Connection Code Machine Side (CCMS) | BT |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features
| Family Description | MB modular connection system with BT MAS-403 FORM AD taper shanks | Country of Origin | Italy |
| Remarks | Verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability. |
Shipping Info
LocalField10
0
Package Weight
1.536
Related Documentation
