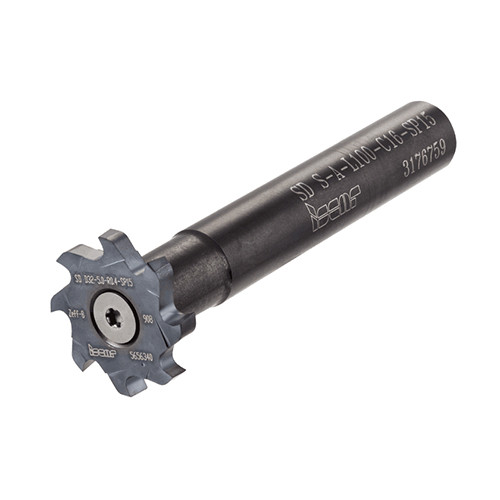

SD S-A-L4.00-C.625-SP15
Stepped cylindrical shanks for interchangeable solid carbide milling heads.

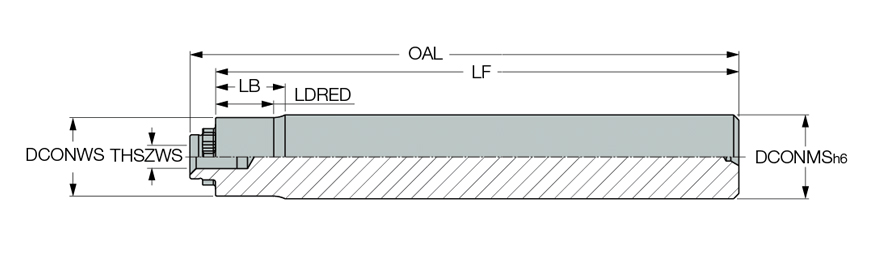

| Connection Thread Nominal Size Workpiece Side (THSZWS) | M5x0.5 | Body Diameter (BD) | 0.591″ |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Body Length (LB) | 0.63″ |
| Material | Carbide | Weight of Item (WT) | 0.35 Lbs |
| Overall Length (OAL) | 4.197″ | Measurement Type | Inch |
| Body Length Maximum (LBX) | 0.72″ | Body Material | Steel |
| Tool Type | Cylindrical Shanks |
Product Features
| Family Description | Stepped cylindrical shanks for interchangeable solid carbide milling heads. | Country of Origin | Israel |

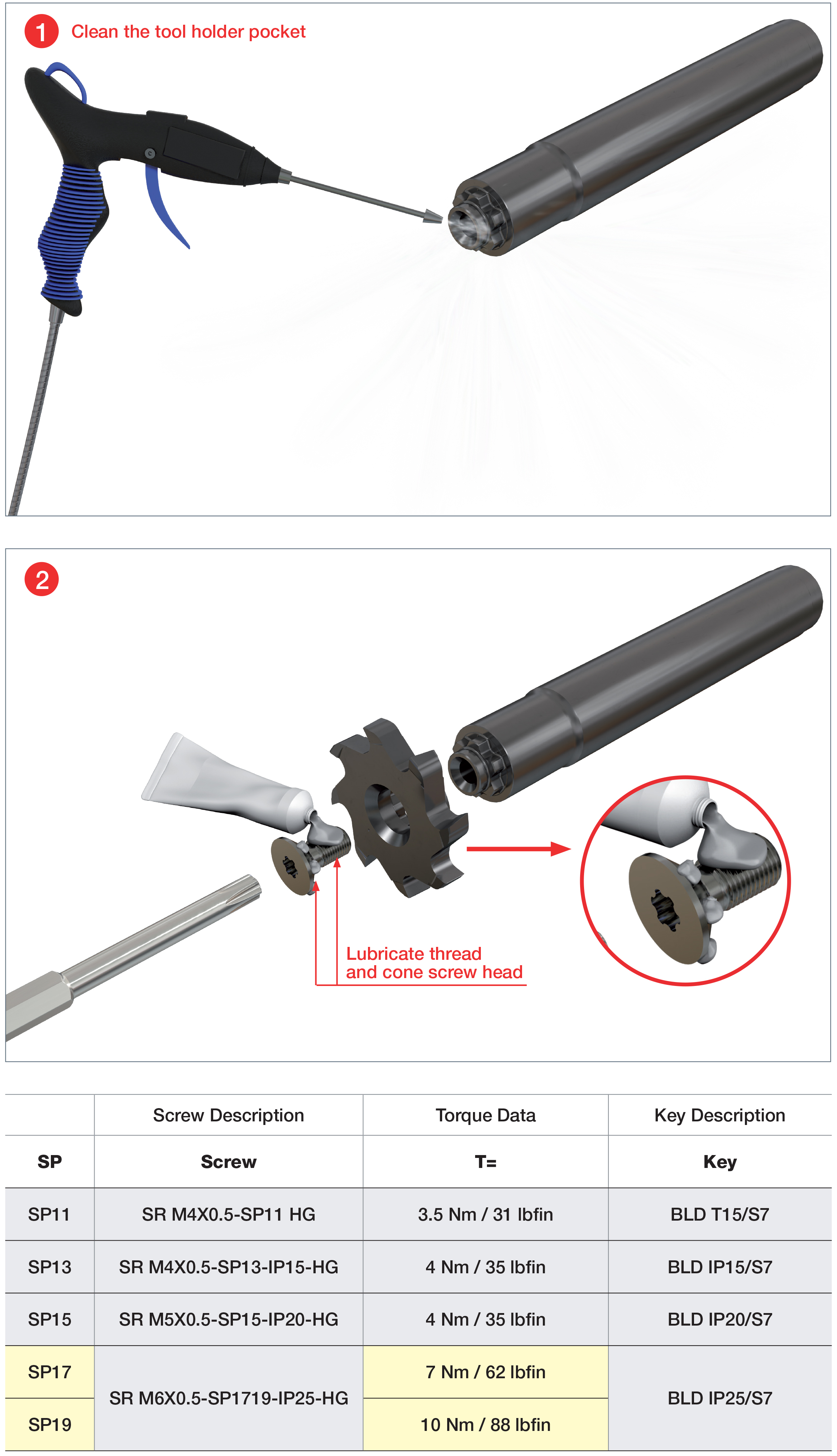

| Remarks | Apply lubricant to the SR M5X0.5-SP15 screw |
Shipping Info
LocalField10
0
Package Weight
0.582
