MM S-A-L3.5/14-C500T08C
MULTI-MASTER, stepped cylindrical shanks for solid carbide milling heads. Available are steel, solid carbide and tungsten shank materials. Tungsten shanks have coolant holes.

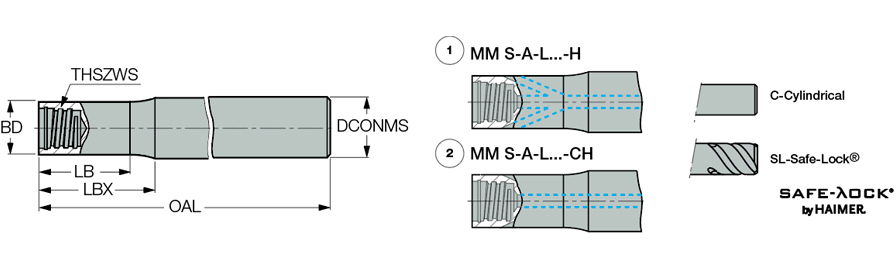

| Connection Thread Nominal Size Workpiece Side (THSZWS) | T08 | Weight of Item (WT) | 0.35 Lbs |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Measurement Type | Inch |
| Material | Carbide | Rotational Speed Maximum (RPMX) | 60000 Rev/min |
| Overall Length (OAL) | 3-1/2″ | Body Material | Carbide |
| Tool Type | Cylindrical Shanks | Connection Code Machine Side (CCMS) | Cylindrical |
| Body Diameter (BD) | 0.48″ |
Product Features
| Family Description | MULTI-MASTER, stepped cylindrical shanks for solid carbide milling heads. Available are steel, solid carbide and tungsten shank materials. Tungsten shanks have coolant holes. | Country of Origin | Israel |
| Remarks | For adaptation click on More Info Do not apply lubricant to the threaded connection |
