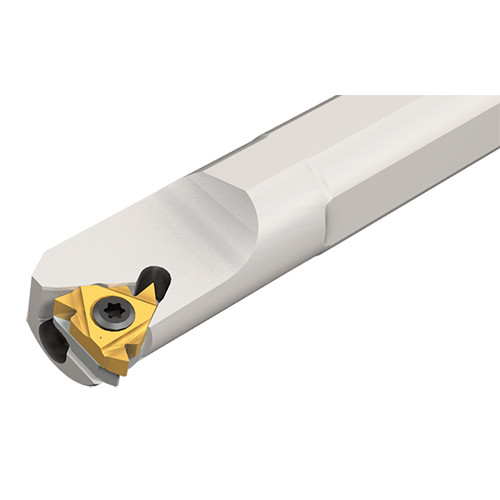

SIL 0500 M16B
Internal threading bars

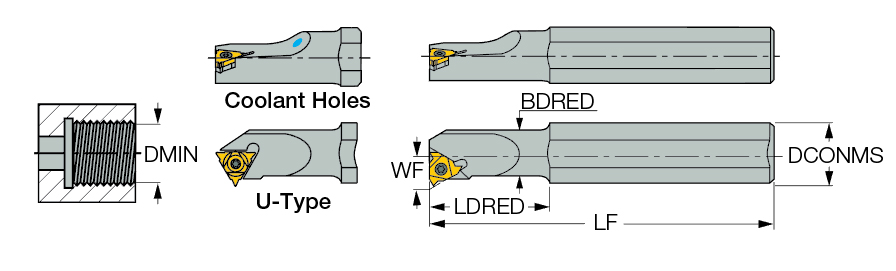

| Connection Diameter Machine Side (DCONMS) | 5/8″ | Application | | Int. Grooving | Internal Threading lay down | |
| Minimum Bore Diameter (DMIN) | 0.64″ | Master Insert Identification (MIID) | 16 IR/IL.. |
| Head Length (LH) | 1.26″ | Body Material | Steel |
| Coolant Supply Property (CSP) | Coolant Thru | Tool Type | Internal Indexable Threading Tools |
| Cutting Direction (HAND) | Left Hand | Measurement Type | Inch |
| Cutting Position | Internal |
Product Features
| Family Description | Internal threading bars | Country of Origin | Israel |
| Remarks | B-steel shank with coolant hole, C-carbide shank without coolant hole, CB-carbide shank with coolant hole All toolholders are made for 1.5 helix angle For GTGA inserts, use anvil AL 16-0 |
Shipping Info
Package Weight
0.470
