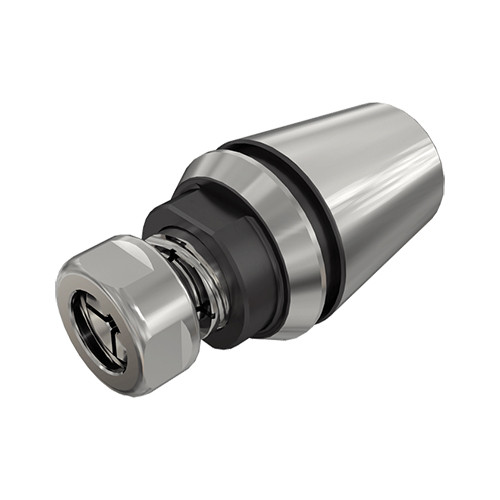

GTINER32ISO2.50X2.00
ER collet tapping attachments, tension and compression ISO type used for CNC milling and turret lathe machines. A compact design with a misalignment compensating mechanism

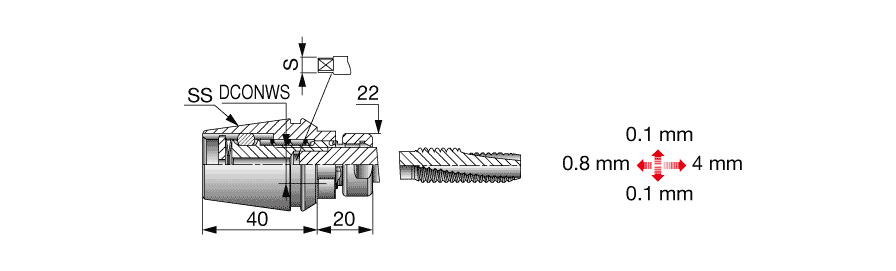

| Shank Size (SS) | ER32 | Tap Max | M3.5 |
| Shank Length (LS) | 40 mm | Tap Min | M3.5 |
| Functional Length (LF) | 20 mm | Measurement Type | Metric |
| Application | | Straight shape | | Connection Diameter Workpiece Side (DCONWS) | 2.5 mm |
| Tool Type | Spring Collets | Body Material | Steel |
Product Features
| Family Description | ER collet tapping attachments, tension and compression ISO type used for CNC milling and turret lathe machines. A compact design with a misalignment compensating mechanism | Country of Origin | ISRAEL |
| Remarks | No coolant should be induced through the tapping collet, as it will cause malfuncation of the mechanism |
Shipping Info
Package Weight
0.485
Related Documentation

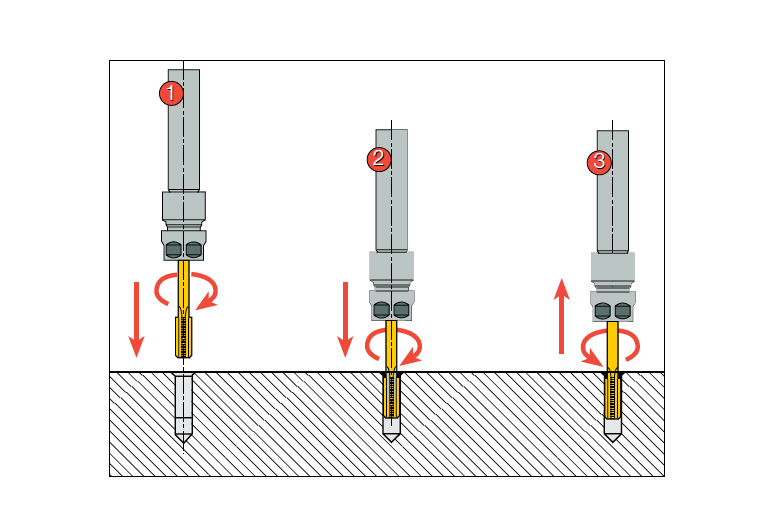

[Operation] @For through- and blind-hole tapping: @(1) Enter feed rate according to thread pitch (or 1-2 % lower). Set spindle to starting point with 0.08 mm clearance. @(2) Start spindle forward with right hand rotation until reaching desired depth. @(3) Stop feed and rotation and reverse to starting point.
