FLJF-3010R16 IC908
Additional Canadian Tariff of 25 %

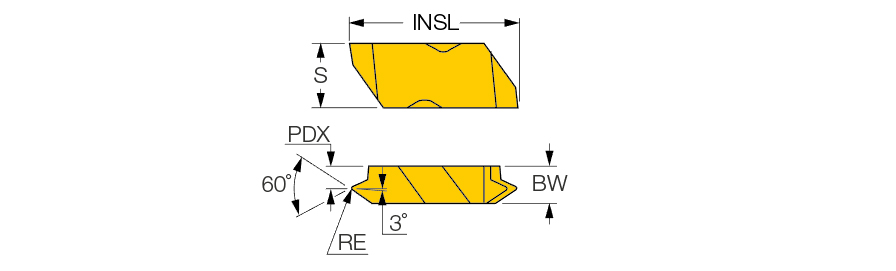

| Thread Standard | THFT | | Application | | Threading (Ext.) Groove Turn T | Threading (Int.) | |
| Threads per Inch (TPI) | 16 | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.0094″ | Profile Included Angle (PNA) | 60 Degrees |
| Insert Thickness (S) | 0.344″ | Measurement Type | Inch |
| Grade | IC908 | Body Material | Carbide |
| Coating | TiAlN | Thread Form Type (THFT) | NJ60 |
| Cutting Edge Material | Carbide |
Product Features
| Family Description | Double-ended, precision flat top threading inserts, for fine pitch thread close to shoulders | Country of Origin | USA |
| Remarks | DMIN according to related boring bar Internal tolerance: MIL-S-8879C - 3B External tolerance: MIL-S-8879C - 3A |
