ISD-EC 7.717-8.188

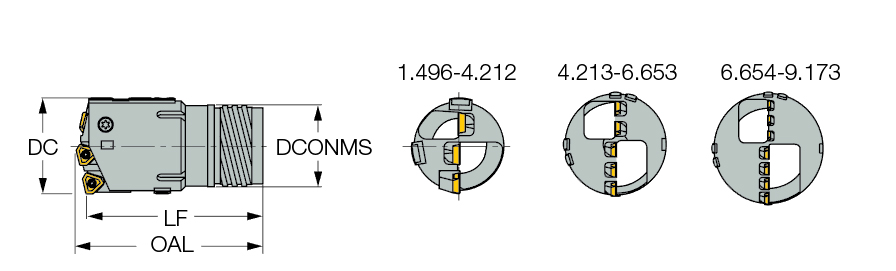

| Application | | Deep Drilling | | Connection Thread Size (Ts) | TS-I31 |
| Connection Diameter Machine Side (DCONMS) | 7.283″ | Cutting Diameter Minimum (DCN) | 7.717″ |
| Tool Type | Deep Hole / Gun Drill | Cutting Diameter Maximum (DCX) | 8.188″ |
| Overall Length (OAL) | 10.63″ | Measurement Type | Inch |
| Coolant Supply Property (CSP) | Coolant Thru | Body Material | Steel |
Product Features

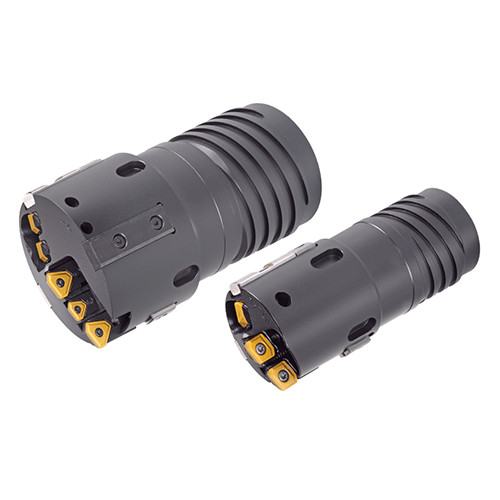

| Family Description | Deep single tube drills with external 4-start thread connection and cartridges. Each item represents a diameter range. For a specific head diameter, an order form should be filled out. | Country of Origin | Japan |
| Remarks | Important: The specified drilling range using the original outer cartridge and pad may be enlarged by using optional outer cartridges and pads as specified on More Info For quotation form and user guide, click on More Info |
